Product Overview

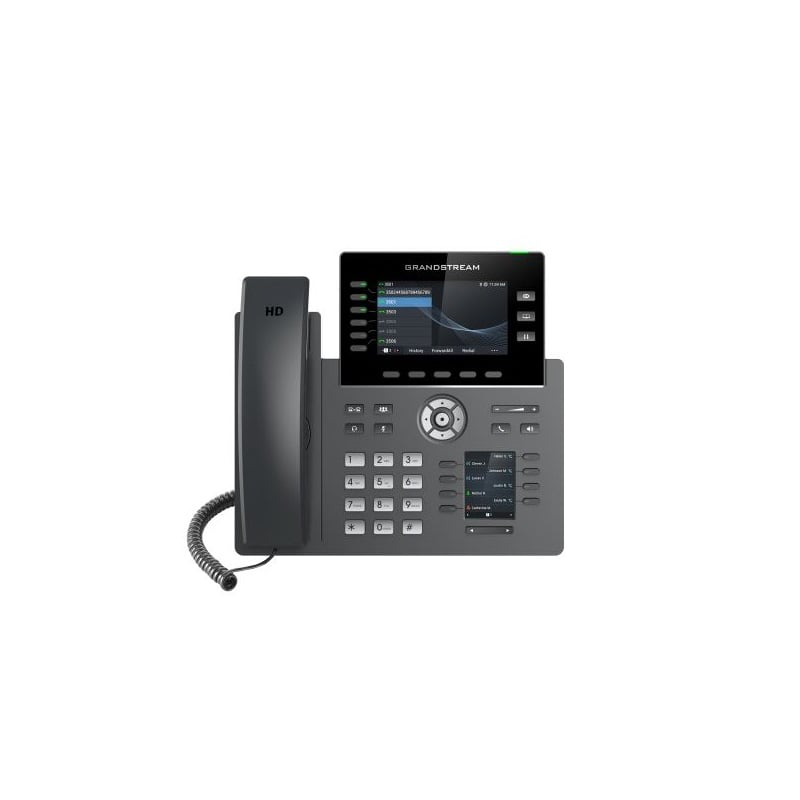

Grandstream GRP2616 Carrier-Grade IP Phone (PoE)
Grandstream GRP2616 Description
Grandstream GXP1625 Features
- HD audio, handset and speakerphone with support for wide-band audio
- 6 line keys with up to 6 SIP accounts
- Dual LCD screens with digital BLF Keys
- Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
- Integrated dual-band 802.11 a/b/g/n/ac Wi-Fi
- Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
- Swappable face plates to allow for easy logo customization
- Integrated Bluetooth
Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6
Network Interfaces
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
Bluetooth
Yes, integrated
Wi-Fi
Yes, integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
USB
Yes
Graphic Display
4.3 inch (480×272) TFT color LCD, 2.4 inch (240×320) additional screen
Voice Codecs and Capabilities
Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band), G723, iLBC, OPUS, in-band and out-of-band DTMF(in audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
Telephony Features
Hold, transfer, forward, 3-way conference, call park, call pickup, shared-callappearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 2000 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over
HD Audio
Yes, HD handset and speakerphone with support for wideband audio
Feature Keys
6 dual-color line keys with up to 6 SIP accounts(can be digitally programmed as up to 24 provisionable BLF/fast-dial keys), 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 10 dedicated function keys for:MESSAGE(with LED indicator),PHONEBOOK,TRANSFER,CONFERENCE,HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOLBase Stand Yes, 2 angle positions available, Wall Mountable (*wall mount sold separately)
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Auxiliary Ports
RJ9 headset jack (allowing EHS with Plantronics headsets), USB
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese and more
Upgrade/Provisioning
Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file.
Power & Green Energy Efficiency
Universal power adapter included:
Input:100-240V ; Output: +12V, 1A ;
Integrated Power-over-Ethernet(802.3af)
Max power consumption 6.1W(power adapter) or 7.8W(PoE)
Temperature and Humidity
Operation: 0°C to 40°C Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Package Content
GRP2616 phone, handset with cord, phone stand, 12V power adapter, network cable, Quick Installation Guide, GPL license
Physical
Unit weight:1020g ; Package weight:1650g
Dimension: 247mm x 228mm x 82.4mm
Compliance
FCC: Part 15 Class B; Part 15 Subpart C 15.247; Part 15 Subpart E 15.407; FCC Part 68 HAC; Part 1 Subpart I(MPE)
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301489-1; EN 301489-17; EN 300328; EN 301893; EN 62311
RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1; AS/CA S004; AS NZS 2772.2
IC: ICES-003; CS-03; RSS-247; RSS-102(MPE).
Additional Details
Product Manufactured by: Grandstream
Product Found in: Corded IP Phones
Cackle Part Number: CGS023
Manufacturer Part Number: GRP2616
