Startech DKT30CHD Portable Mini USB-C Multiport Dock
Startech DKT30CHD Description

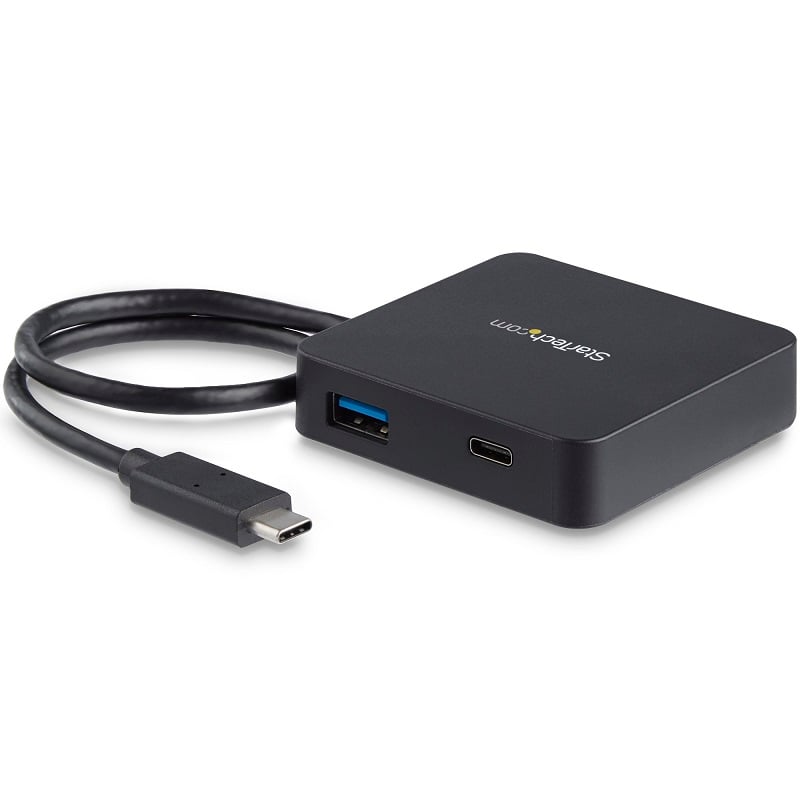

Startech DKT30CHD USB-C Multiport Adapter with HDMI combines the capability of three single-function adapters, a USB-C video adapter, USB-C to USB 3.0 adapter, and Gigabit Ethernet adapter, into a portable docking station for your laptop. You can connect a 4K HDMI display and two USB 3.0 devices (1x USB-A, 1x USB-C), and get high-speed network access, all through a single cable.
The USB Type-C adapter is compatible with Thunderbolt 3 ports.
Add a 4K UHD Monitor
With HDMI output, this USB-C multiport adapter makes it easy to expand your virtual workspace onto an external 4K HDMI monitor. The adapter supports resolutions up to 4096 x 2160p (24Hz) or 3840 x 2160p (30Hz), as well as audio.
Reliable Network Access
The USB-C multiport adapter ensures a reliable wired network connection with a Gigabit Ethernet port, which is ideal for areas with limited Wi-Fi® access such as in classrooms, office buildings and hotels.
Connect Your USB Devices Easily
With two USB 3.0 ports (1x USB-A, 1x USB-C) you get access to traditional USB Type-A devices, as well as newer USB-C devices you add in the future.
Bring Productivity with You Wherever You Go
With its compact design and bus-powered performance, the portable multiport adapter is easy to take with you anywhere you take your laptop. The adapter features a pre-attached USB-C cable, so you have one less cable to carry when you’re on the move.
The StarTech.com Advantage for Docking Stations
- Maximum compatibility – StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
- Get more done faster – More ports and more displays maximize end user connectivity and productivity
- Quick installation – eliminate deployment headaches that waste time and frustrate end users
- IT Grade quality – trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support
The DKT30CHD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: Your USB-C equipped host laptop must support video (DP Alt Mode) to work with this adapter. The adapter does not support USB Power Delivery.
Startech DKT30CHD Features
- Integrate into small workspaces in offices and home offices
Technical Specifications
| Warranty Information | Warranty | 3 Years |
|---|---|---|
| Connector(s) | Connector Type(s) | 1 – USB Type-C (24 pin) USB 3.0 (5Gbps) |
| 1 – USB Type-C (24 pin) USB 3.0 (5Gbps) | ||
| 1 – HDMI (19 pin) | ||
| 1 – RJ-45 | ||
| 1 – USB Type-A (9 pin) USB 3.0 (5 Gbps) | ||
| Environmental | Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Humidity | 5~90% RH (Non-condensing) | |
| Hardware | 4K Support | Yes |
| Fast-Charge Port(s) | No | |
| Displays Supported | 1 | |
| Bus Type | USB-C | |
| Chipset ID | Genesys Logic – GL3523 Realtek – RTL8153 Parade – PS176 | |
| Packaging Information | Shipping (Package) Weight | 0.4 lb [0.2 kg] |
| Package Length | 8.3 in [21 cm] | |
| Package Width | 5.7 in [14.5 cm] | |
| Package Height | 1.6 in [40 mm] | |
| Performance | Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz | |
| UASP Support | Yes | |
| Type and Rate | USB 3.0 – 5 Gbit/s | |
| Compatible Networks | 10/100/1000 Mbps | |
| Auto MDIX | Yes | |
| Full Duplex Support | Yes | |
| Physical Characteristics | Color | Black |
| Material | Plastic | |
| Cable Length | 13.4 in [340 mm] | |
| Product Length | 2.6 in [6.5 cm] | |
| Product Width | 2.4 in [62 mm] | |
| Product Height | 0.6 in [1.5 cm] | |
| Weight of Product | 1.8 oz [52 g] | |
| Power | Power Source | USB-Powered |
| Software | OS Compatibility | Windows® 7, 8, 8.1, 10 Mac OS 10.10 to 10.15 Chrome OS™ |
| Special Notes / Requirements | System and Cable Requirements | Host laptop with an available USB-C port (to ensure full functionality, the laptop’s USB-C port must support DP alt mode). |
| Note | Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode. | |
| A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). | ||
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. | ||
| The USB Type-C connector (female) is data only. | ||
| What’s in the Box | Included in Package | 1 – USB-C multiport adapter |
| 1 – quick-start guide |
Additional Details
Product Manufactured by: Startech
Product Found in: USB-C Docking Station
Cackle Part Number: CST087
Manufacturer Part Number: DKT30CHD
